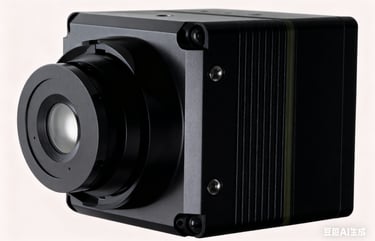

FSD-1600C

Industrial infrared camera movement module high temperature 1600 degrees

Product Features

Image effects

• 384 * 288 resolution

  Self-developed intelligent gain control algorithm, detail mixing enhancement algorithm, 3D noise reduction algorithm, 10 pseudo-colors

  ² Intelligent detection

  Fire point detection, high temperature detection

  ² Accurate temperature measurement

  Support 1 line temperature measurement, 9 frame temperature measurement, 10 point temperature measurement, 2 irregular area temperature measurement, 2 round area temperature measurement

  Full screen maximum temperature and minimum temperature positioning

  Temperature measurement range: -20 ℃ --150 ℃; 0 ℃ --550 ℃; 500 ℃ --1600 ℃

  Temperature measurement accuracy: ± 2 ° C or ± 2% of the reading (whichever is greater)

  ² Abnormal alarm

  Support 1 alarm input and 1 alarm output

  ² Applicable scenarios:

  Used in electric power industry, chemical disposal centers, combustible warehouses, petrochemical plants, coal mines and other industrial sites;

  It is used in scenarios where real-time temperature monitoring at key locations is required to prevent dangerous events.

  ² Development interface:

  Provide SDK development kit to facilitate secondary development and integration

Industrial infrared thermal imager core module with high temperature up to 1600 degrees

Technical parameters
