SD-1600

The independently developed and produced high-temperature spherical blackbody radiation source is mainly used as a dedicated device for calibrating non-contact radiation temperature measurement instruments such as infrared radiation thermometers and infrared thermal imagers.

Product Features

 Large orifice diameter, suitable for most D:S radiation thermometers;

 Wide temperature range, 700 ℃ to 1600 ℃;

 Equipped with Eurotherm 0.1-class temperature control instrument, with high temperature control accuracy;

 The temperature control instrument has multi-point independent temperature correction function;

 The cavity has a spherical structure; high emissivity material is used, with emissivity better than 0.998;

 Our company's unique target surface treatment technology makes the target surface temperature more uniform, and the surface will not be damaged or chipped even after long-term use of the equipment and frequent temperature rise and fall; this product complies with JJG 856-2015 "Working Radiation Thermometers" regulations and can meet the daily verification work of infrared radiation thermometers and infrared thermal imagers in metrological institutions.

emperature range: 700 ℃～1600 ℃

Chamber opening diameter: Φ50 mm

Emissivity: Better than 0.998

Resolution: 0.1℃

Temperature control stability: Not greater than (the larger of 0.1 ℃ and 0.1%t) / 10 min

Uniformity: Not greater than (the larger of 0.15 ℃ and 0.15%t)

Chamber depth: 440 mm

Heating time: 1h (from room temperature to 700 ℃), 2h (from 700℃ to 1600 ℃)

Power supply: 220 VAC 50 Hz; approximately 6.5 kW

Overall dimensions: Width 730 mm, depth 780 mm, height 1470 mm

Net weight: Approximately 150.0 kg

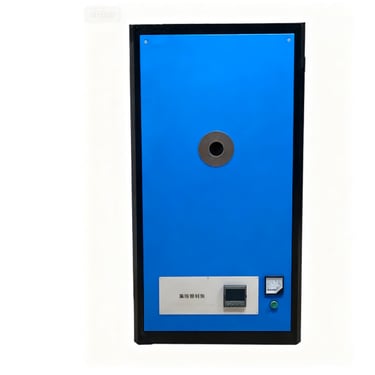

High-temperature spherical blackbody radiation source
