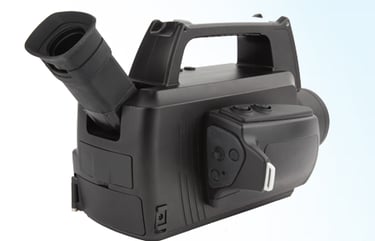

FSD-SF6Gas leak detection thermal imager

Product Features

In the power industry, SF6 gas is widely used as an insulating medium. Once SF6 gas leaks, it will cause great damage to power equipment and the environment. Therefore, detecting SF6 gas leaks has become a key monitoring task in the power industry. The GF706 product can perform long-distance non-contact detection of SF6 gas leaks when power equipment is in normal operation, which improves work efficiency and ensures the safety of inspectors.

A high-performance infrared thermal imager integrating SF6 gas leakage point detection and temperature measurement

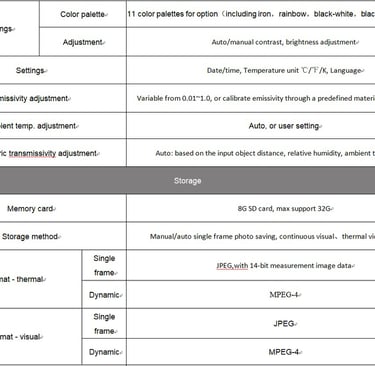

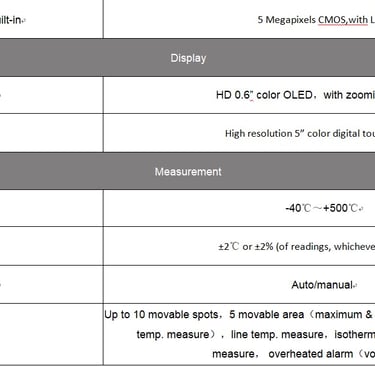

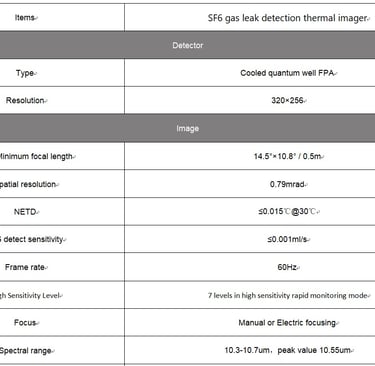

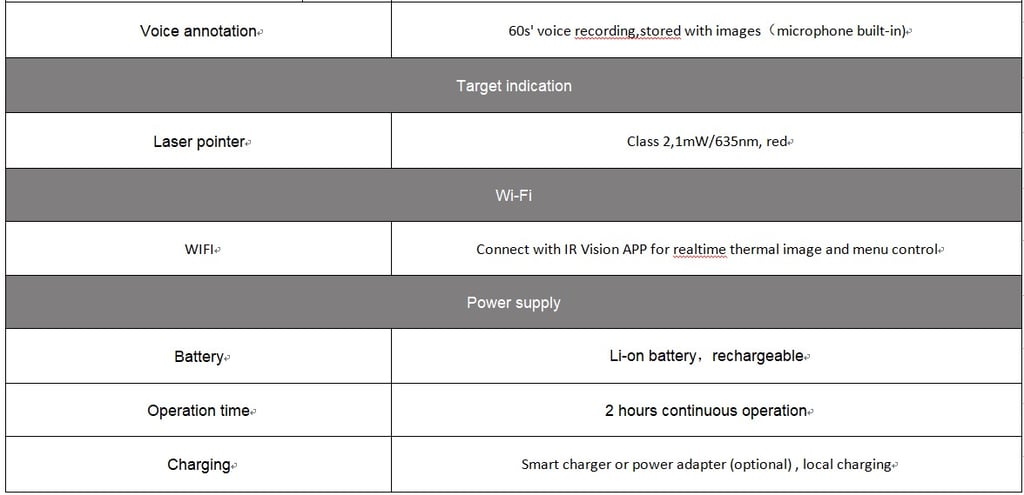

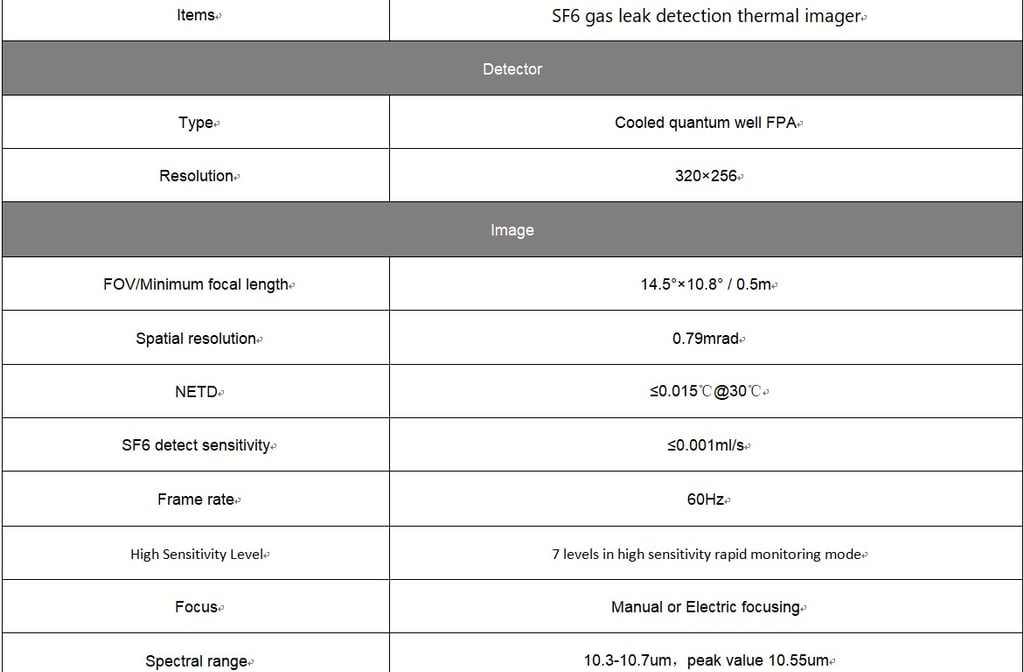

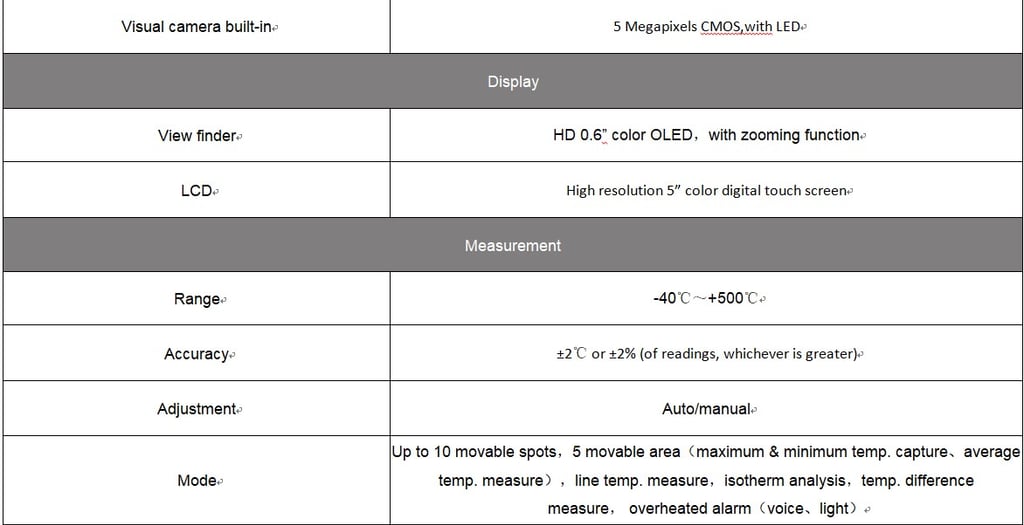

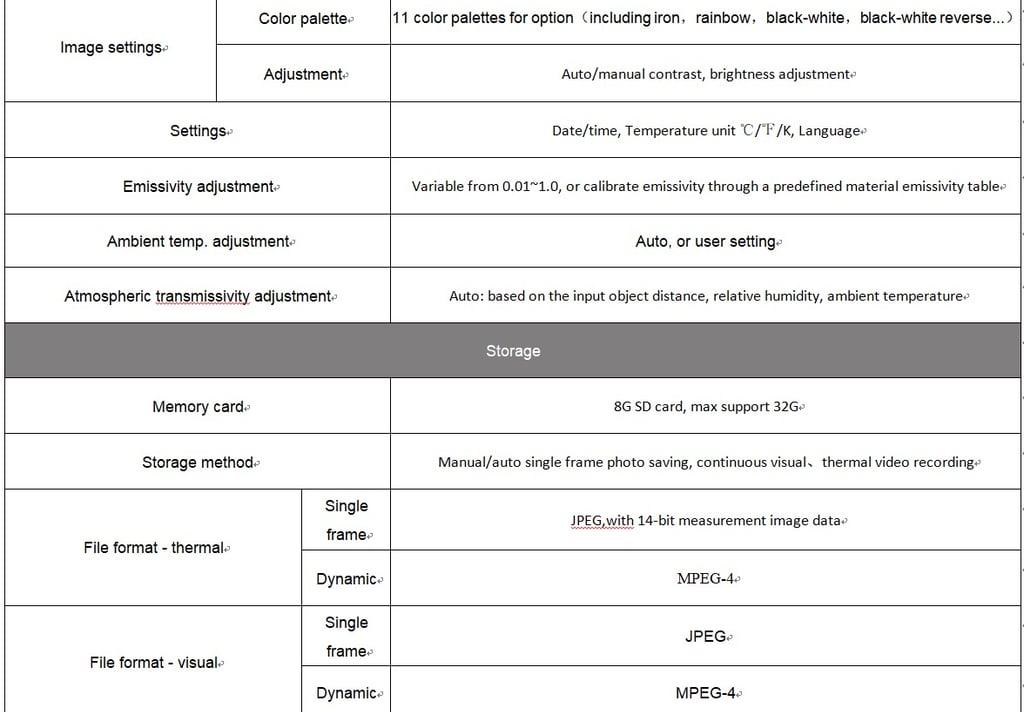

Technical parameters
